Ubiquiti airFiber 11 GHz (AF11-Complete-LB)
€1.384,55
In stock
Product Details
AirFiber 11
from Ubiquiti Networks is the first modular airFiber radio system purpose-built for the 11 GHz licensed frequency market that breaks free from the congested 5 GHz band. Housed in a compact, highly efficient form factor, airFiber 11 delivers amazing wireless gigabit+ performance, low latency, and long range, making it ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.
Product Specification
| airFiber AF-11 | |
| Dimensions | 327 x 112 x 86 mm, (12.87 x 4.41 x 3.39") |
| Weight | 2.26 kg (5.0 lb) |
| RF Connectors | (4) SMA Weatherproof, Two per Chain TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer |
| Power Supply | 50V, 1.2A PoE Gigabit Adapter (Included) |
| Power Method | Passive Power over Ethernet, DC Power Block) |
| Power Supply | UniFi PoE Switch |
| Supported Voltage Range | 38-56VDC |
| Certifications | FCC Part 101, ETSI EN 302 217 |
| Mounting | AF-11G35 Mount Compatible |
| Operating Temperature | -40 to 55? C (-40 to 131? F) |
| Networking Interface Data | (1) 10/100/1000 Ethernet Port |
| Networking Interface Management | (1) 10/100 Ethernet Port |
| System | |
| Processor | INVICTUS 2 IC |
| Maximum Throughput | 1.2+ Gbps |
| Encryption | 128-bit AES |
| OS | airOS F |
| Wireless Modes | SISO/MIMO |
| Operating Frequency | 10.7-11.7 GHz (Depends on Regulatory Region*) |
| Max. Conducted TX Power | 30 dBm (Depends on Regulatory Region*) |
| Frequency Accuracy | ? 1 ppm |
| Channel Bandwidth | 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable Programmable Uplink and Downlink Duty Cycles |

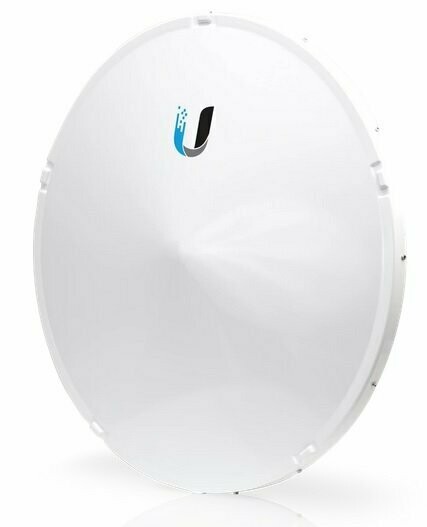

| airFiber AF-11G35 | |
| Dimensions | 811 x 811 x 460 mm (31.9 x 31.9 x 18.1") |
| Weight (Mount Not Included) | 7.14 kg (15.74 lb) |
| Weight (Mount Included) | 11.85 kg (26.12 lb) |
| Frequency | 10.3 to 11.7 GHz |
| Gain | 35 dBi |
| HPOL Beamwidth | 2.5? |
| VPOL Beamwidth | 2.5? |
| Maximum VSWR | 2:1 |
| Wind Loading | 1538 N @ 200 km/h (346 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization Default | H/V |
| After Rotating OMT | ? 45? |
| Cross-Pol Isolation | 35 dB |
| Mounting | Pole Mount |
| Pattern Regulatory | ETSI 302 217-4-2, Class 3 and FCC Cat B |
