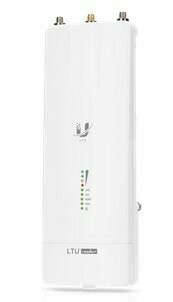

Ubiquiti LTU Rocket (LTU-Rocket)
€306,74
Disponibile
Dettagli del prodotto
- 5 GHz PtMP LTU™ BaseStation Radio
- 600+ Mbps Point-to-MultiPoint Performance
- Up to 64 Client Connections per AP
- Up to 2+ Mpps Performance
Incorporating Ubiquiti's proprietary LTU technology, the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing, proprietary RF filtering, and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades.
Functions in a PtMP environment using the LTU-Pro, LTU-Lite for subscriber stations.
Deployment FlexibilityThe LTU Rocket can be used with existing airMAX 5 GHz sector antennas offering gain of 16 to 22 dBi, as well as airMAX 5 GHz omni antennas offering gain of 10 to 13 dBi.
The radio's built-in mounting bracket allows it to fit into the radio mount of these antennas ? no special tools are needed for installation.
Compatible airMAX AntennasFor best performance, antennas should be selected to allow for a conducted TX power of 20 dBm or below.
Functions in a PtMP environment using the LTU-Pro, LTU-Lite for subscriber stations.
Deployment FlexibilityThe LTU Rocket can be used with existing airMAX 5 GHz sector antennas offering gain of 16 to 22 dBi, as well as airMAX 5 GHz omni antennas offering gain of 10 to 13 dBi.
The radio's built-in mounting bracket allows it to fit into the radio mount of these antennas ? no special tools are needed for installation.
Compatible airMAX AntennasFor best performance, antennas should be selected to allow for a conducted TX power of 20 dBm or below.
| LTU-Rocket | |
| Dimensions | 244 x 82 x 48 mm (9.61 x 3.23 x 1.89") |
| Weight | 0.468 kg (16.5 oz) |
| Enclosure | Diecast Aluminum and Polycarbonate |
| Weatherproofing | IP67 |
| Networking Interface | 10/100/1000 Ethernet Port |
| Enclosure | Outdoor UV Stabilized Plastic |
| Powering: | |
| Max. Power Consumption | 15W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Proprietary 4-Pair Passive PoE Pins 1, 2; 4, 5+ and Pins 3, 6; 7, 8- |
| Voltage Range | +18 to +54VDC |
| Operating Temperature | -40 to 55? C (-40 to 131? F) |
| Antenna: | |
| RF Connectors | RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS) |
| GPS Antenna | External Magnetic Base |
| Mounting | Integrated Pole Mount (Included) Rocket Mount Compatible GPS Pole Mount (Included) |
| System | |
| Maximum Throughput | 675.84 Mbps |
| Maximum Range | 100+ km |
| Packets per Second | 2+ Million |
| Encryption | WPA2-PSK (AES) |
| Forward Error Correction | LDPC |
| Uplink/Downlink Ratio | 25/75, 33/67, 50/50 |
| OS | airOS LTU |
| Wireless Modes | AP |
| Regulatory / Compliance Information | |
| Certifications | FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1 |
