Ubiquiti GigaBeam Long Range (GBE-LR)
€155,28
Disponibile
Dettagli del prodotto

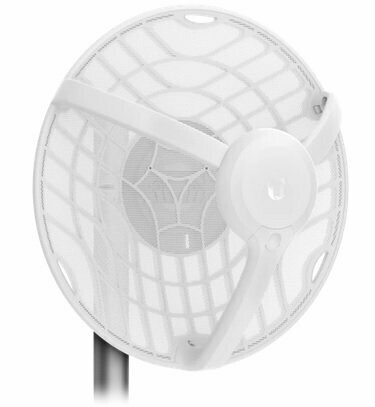

Featuring a high-gain dish antenna, the GigaBeam LR is a 60 GHz radio designed for low-interference and high-throughput connectivity in long-range deployments. It includes a 5 GHz radio for failover. For the 60 GHz link, the GigaBeam LR supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi.
| Product Specification | |
| Dimensions | 415 x 415 x 303 mm (16.34 x 16.34 x 11.93") |
| Weight Without Mount With Mount |
1.4 kg (3.09 lb) 1.8 kg (3.97 lb) |
| Enclosure | Aluminum, UV-stabilized Polycarbonate |
| Antenna Gain 5 Ghz 60 Ghz |
11 dBi 38 dBi |
| Networking Interface | 10/100/1000 Mbps Ethernet Port |
| Max. Power Consumption | 11W |
| Power Method | Passive PoE, Pins 4, 5+ and 7, 8- |
| Power Supply | 24VDC, 0.5A Gigabit PoE Adapter (Included) |
| Voltage Range | +22 to +26VDC |
| LEDs | Power/Ethernet/5G/60G |
| Wind Loading | 56 N @ 200 km/h <(12.6 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |

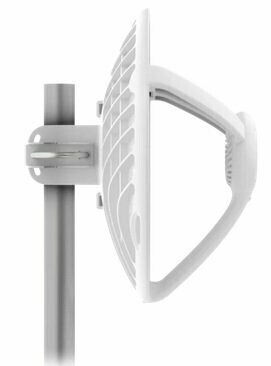

| Mounting | Pole Mount (Included) |
| ESD/EMP Protection | ? 24kV Contact/Air |
| Operating Temperature | -40 to 60? C (-40 to 140? F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE |
| Radio | |
| Max. Conducted TX Power 5/60 GHz Combined |
25 dBm |
| Channel Bandwidth 60 Ghz 5 Ghz |
2160 Mhz 20/40/80 Mhz |
| Operating Frequency (Mhz) | |
| Worldwide | 5180 ? 5875 57,000 - 66,000 |
| Management Radio (Mhz) | |
| Worldwide | 2412 - 2472 |
