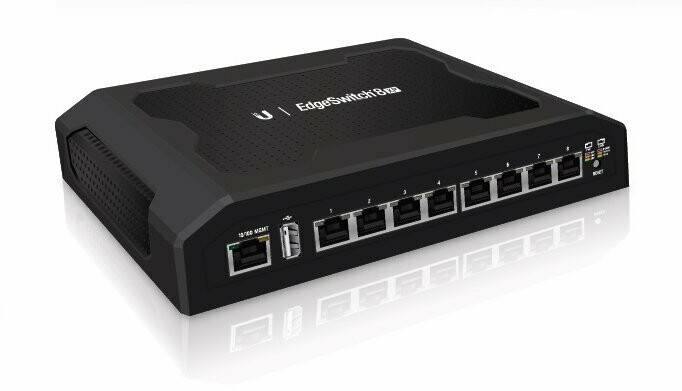

Ubiquiti EdgeSwitch 8-port (ES-8XP)

EdgeSwitch 8 XP Gigabit Ethernet performance combined with Industrial strength construction and a 150Watt power supply. The EdgeSwitch 8 version is capable of powering up to eight 24V or 48V devices with software selectable output voltage control. It is the ideal PoE solution for use with Ubiquiti airMAX base station deployments.

Important fetures:

• 8 Gigabit PoE Ports
• 24V/48V Configurable Passive PoE
• 150 W Power
• EdgeSwitch PoE Configuration Interface
• Tough Full Metal and Rubber Casing

• Dimensions	210 x 185 x 41 mm
  Weight	1.24 kg
  Power Input	110-120VAC / 210-230VAC
  Max. Power Consumption	150 W
  PoE Out Voltage Range	45-48VDC / 22-24VDC
  Max. PoE Wattage Per Data Port	11.5 W (24 V), 23 W (48V)
  ESD Rating	24 kV Air / 24 kV Contact
  PoE Method	Passive
  Button	Reset
  USB Port	2.0 Type A (Reserved for Future Use)
  Processor	MIPS 24K, 400 MHz
  System Memory	64 MB
  Code Storage	8 MB
  Certifications	CE, FCC, IC
  Wall-Mount	Yes
  Operating Temperature	-25 to 55?C (-13 to 131? F)
  Operating Humidity	90% Non-Condensing
  PoE Configurable Per Port
  Management Port	N/A
  Data Ports	Off/24V/48V
  LEDs Per Port
  Management Port	N/A
  Data Ports	PoE, Speed/Link/Activity
  Networking Interfaces
  Management Port	(1) 10/100 Ethernet Port
  Data Ports	(8) 10/100/1000 Ethernet Ports
