Ubiquiti AirFiber FX 11 GHz (AF-11FX)
€519,02
In stock
Product Details

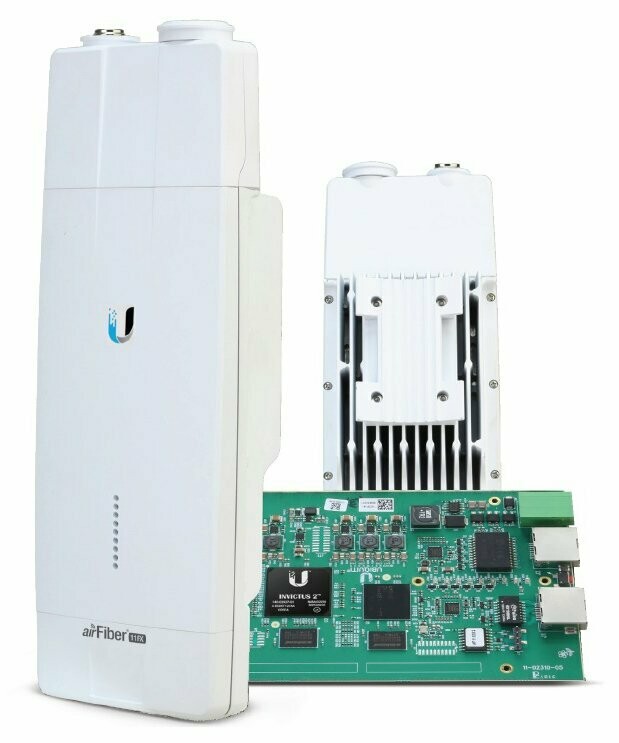

AirFiber 11FX from Ubiquiti Networks is a product used to implement point-point radio link, providing high performance. It works in 11GHz band. This device is based on technology which is used in valued AirFiber 24. It is sold whitout antennas, which can be adjusted according to needs (gain from 23dBi to 34dBi).
This product does not contain any duplexer. To provide correct operation, you should decide which frequency of 11GHz band would you like to use and install adequate duplexer.
| Dimensions | 224 x 82 x 48 mm |
| Weight with eqiupment | 0.35 kg |
| Maximum power consumption | < 40W |
| Interfaces | 2x RP-SMA Weatherproof (CH0, CH1) 1x SMA Weatherproof (GPS) Data 10/100/1000 Ethernet Port Management Port 10/100 Ethernet Port |
| Power supply | 24V power adapter, 1A Gigabit PoE Adapter (included) |
| Mounting | airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (included) |
| Certifications | DFS Certified FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1 |
| Operating temperature | -40 to 55?C |
| Processor | INVICTUS IC |
| Maximum throughput | 500+ Mbps |
| Maximum range | Up to 150 km |
| Wireless modes | Master/Slave |
| Operating frequency | 11 GHz (Dependent on Regulatory Region) |
| Channel bandwidth | 10/20/30/40/50 MHz |
| Max. Conducted TX Power | Up to 26dBm (Dependent on Regulatory Region) |
| Frequency Accuracy | ? 2,5 ppm without GPS synchronization ? 0,2 ppm with GPS synchronization |
